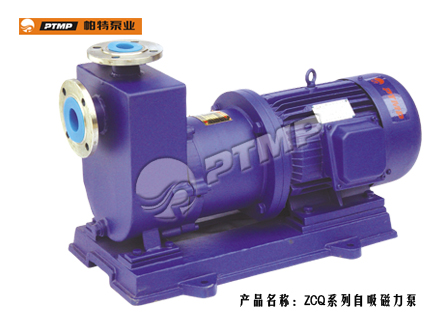

ZCQ spontaneous imbibition magnetic drive pump
| product class:Magnetic pump series |
| product name:ZCQ spontaneous imbibition mag.... |
|
Performance data |
Range of capacity | 1.8~1450m³/h |
| Range of head | ≤133m | |
| Medium temperature | -10℃~120℃ | |
| Ambient temperature | Up to 40℃ | |
| Maximum working pressure | suction pressure+head of pump≤1.6MPa | |
| Motor data |
Supporting power |
|
| Voltage | 380V | |
| Frequency | 50HZ | |
| Rotating speed | 2900r/min,1450r/min,970r/min | |
| Protection class | IP44/IP54 | |
| Insulation class | B/F | |
| Material | pump body , pump cover,impeller | cast iron |
| Pump shaft | 45 steel /stainless stell 3Crl3 | |
| Mechanical seal | silicon carbide,graphite,tungsten carbide,hard alloy and etc. |
- overview
- feature
- purpose
- Model significance
- Show case
- data behavioral
- Application area
Just as its name implies, self-priming pump doesn’t need priming water before start. After a short time f running, water is absorbed by pump itself for normal operation. ZCQ self-priming magnetic pump is not only provided with self-priming function, but also of magnetism-driven structure. Featured by full seal and leak-tightness, it is an optimal pump for automated distant control and for floating uses.
Material of Wet Parts: Stainless Steel (Austenite)
Connecting Type: Flange
Head H: 12～50(m)
Power N: 0.37～7.5(kw)
Medium Temperature(t): -20℃～100℃
Flow Q:3～27(m3/h);Kinematics Viscosity of medium: ≦30×10-6(m3/s)
ZCQ65-50-145
Z-Self-priming type
CQ-Magnetic pumps
65-Inlet diameter(mm)
50-Outlet diameter(mm)
145-Impeller diameter(mm)
有限公司17679 副本.jpg)
