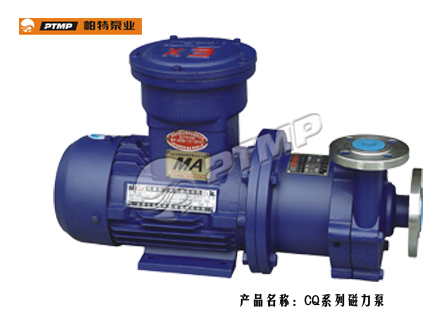

CQ magnetic drive pumps
| product class:Magnetic pump series |
| product name:CQ magnetic drive pumps |
|
Performance data |
Range of capacity | 1.8~1450m³/h |
| Range of head | ≤133m | |
| Medium temperature | -10℃~120℃ | |
| Ambient temperature | Up to 40℃ | |
| Maximum working pressure | suction pressure+head of pump≤1.6MPa | |
| Motor data |
Supporting power |
|
| Voltage | 380V | |
| Frequency | 50HZ | |
| Rotating speed | 2900r/min,1450r/min,970r/min | |
| Protection class | IP44/IP54 | |
| Insulation class | B/F | |
| Material | pump body , pump cover,impeller | cast iron |
| Pump shaft | 45 steel /stainless stell 3Crl3 | |
| Mechanical seal | silicon carbide,graphite,tungsten carbide,hard alloy and etc. |
- overview
- feature
- purpose
- Model significance
- Show case
- data behavioral
- Application area
CQ type pump owns advantages such as simple structure, nice appearance, small body, little noise, reliable in operation, easy to operate and convenient to maintain. The magnetic drive part is mainly made of ferrite, and overflow part is made of stainless steel. Currently it is the no-leakage pump applied most widely
It is applicable in pumping chemical media such as acid and alkali liquids, oil, rare and valuable liquids, poisonous liquids and volatile liquids etc. It is especially applicable in pumping flammable and explosive liquids
40CQ-20
40-Inlet diameter(mm)
CQ-Magnetic pumps
20-Head 20(m)
