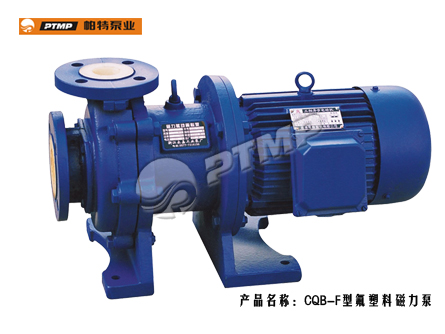

CQB-F fluoroplast magnetic drive pumps

product class:Magnetic pump series

product name:CQB-F fluoroplast magnetic dri....

Performance data	Range of capacity	1.8~1450m³/h
	Range of head	≤133m
	Medium temperature	-10℃~120℃
	Ambient temperature	Up to 40℃
	Maximum working pressure	suction pressure+head of pump≤1.6MPa
Motor data	Supporting power
	Voltage	380V
	Frequency	50HZ
	Rotating speed	2900r/min,1450r/min,970r/min
	Protection class	IP44/IP54
	Insulation class	B/F
Material	pump body , pump cover,impeller	cast iron
	Pump shaft	45 steel /stainless stell 3Crl3
	Mechanical seal	silicon carbide,graphite,tungsten carbide,hard alloy and etc.

overview
feature
purpose
Model significance
Show case
data behavioral
Application area

ALL flow-through parts of CQB-F fluorine lining magnetic pump are made of PVF2 and UHMWPE. Under normal temp., PVF2 has a fine corrosion resistance to many organic solvents like halogen, halogenated hydrocarbon, strong oxidant, boiling acid and alkali; UHMWPE has a fine corrosion resistance to inoxidable acid (dilute sulfuric acid, nitric acid and large concentration hydrochloric acid, phosphorus acid, hydrofluoric acid, and salty solutions. Both materials can’t resist the corrosion of strong oxidable acid. The fluorine alloy pump has a metal shell pipeline and outside. Those with transmission power below 3kw adopt full fluorine structure.

Material of Wet Parts: PVF2，F46
Connecting Type: Flange or Pipe
Medium Temperature(t): -20℃～100℃
Head H: 8～32(m);Power N: 0.12～18(kw)
Flow Q: 1.8～100 (m³/h);Kinematics Viscosity of medium: ≦30×10-6(m³/s

CQB50-32-160F
CQB-Magnetic Pumps
50-lnlet diameter(mm)
32-Outlet diameter(mm)
160-Impeller diameter(mm)
F-Wet parts as fluoric plastic allo
