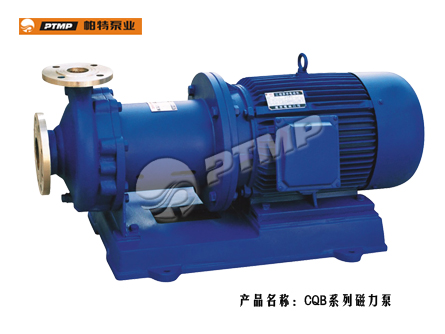

CQB magnetic drive pumps
| product class:Magnetic pump series |
| product name:CQB magnetic drive pumps |
|
Performance data |
Range of capacity | 1.8~1450m³/h |
| Range of head | ≤133m | |
| Medium temperature | -10℃~120℃ | |
| Ambient temperature | Up to 40℃ | |
| Maximum working pressure | suction pressure+head of pump≤1.6MPa | |
| Motor data |
Supporting power |
|
| Voltage | 380V | |
| Frequency | 50HZ | |
| Rotating speed | 2900r/min,1450r/min,970r/min | |
| Protection class | IP44/IP54 | |
| Insulation class | B/F | |
| Material | pump body , pump cover,impeller | cast iron |
| Pump shaft | 45 steel /stainless stell 3Crl3 | |
| Mechanical seal | silicon carbide,graphite,tungsten carbide,hard alloy and etc. |
- overview
- feature
- purpose
- Model significance
- Show case
- data behavioral
- Application area
The wet parts of this pump are made of full stainless steel material to perform outstanding corrosion resistance to organicacid, organic compound, alkali, neutral solution and a great many of gases. Double helix carbon curveite bearing and hard alloy bearing are provide with good abrasion-resisting property to ensure the service life of product. It is an optimal pump for handing corrosive mediums without leakage
CQB50-32-160
CQB-Magnetic pump
50-Inlet diameter(mm)
32-Outlet diameter(mm)
160-Impeller diameter(mm)
（依利安達(dá)電子昆山有限公司）17679.jpg)
制藥廠logo17679 副本.jpg)
